What is a dedicated circuit?

A dedicated circuit is an electrical circuit that serves only one appliance or device, with its own breaker in the panel. It prevents the circuit from being overloaded by other devices and ensures the appliance receives consistent, reliable power. Major appliances like refrigerators, dishwashers, HVAC units, and EV chargers require dedicated circuits by code.

Do I need a permit to add a circuit in Murfreesboro, TN?

Yes. Adding a new circuit in Murfreesboro requires an electrical permit from the city or Rutherford County, depending on your jurisdiction. Murfreesboro Pro Electric handles all permit applications and coordinates the required inspection so the work is fully code-compliant and documented.

Which appliances require a dedicated circuit?

The National Electrical Code (NEC) requires dedicated circuits for refrigerators, dishwashers, garbage disposals, microwave ovens, washing machines, electric dryers, electric ranges and ovens, HVAC units, water heaters, EV chargers, and any other high-draw appliance. Running these on shared circuits can trip breakers repeatedly and create fire hazards.

Panels & Circuits

Dedicated Circuit Installation in
Murfreesboro, TN

New circuits for appliances, EV chargers, HVAC units, workshops, and home offices — properly permitted, wired, and inspected by licensed Murfreesboro electricians.

📞 Call (610) 735-6713 ?? (610) 735-6713

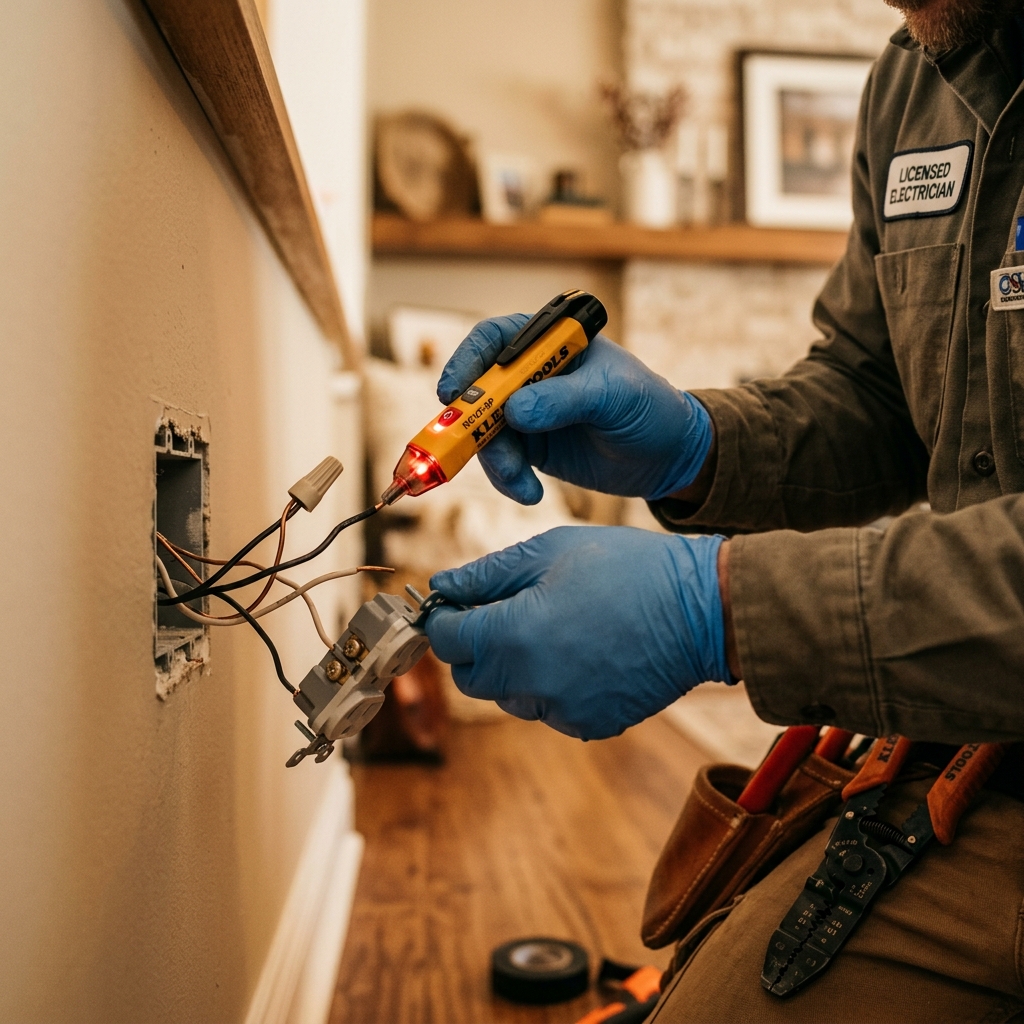

Electrician Running New Dedicated 240V Appliance Circuit in Murfreesboro TN

Dedicated Circuit Installation in Murfreesboro, TN

Running too many devices on a single circuit — or plugging a high-draw appliance into a shared outlet — is one of the most common causes of tripped breakers, overheated wiring, and electrical fires in Murfreesboro homes. A dedicated circuit provides a direct, protected electrical path from your panel to a single device, ensuring reliable power and eliminating the risk of overload.

Murfreesboro Pro Electric installs new dedicated circuits for any application — from adding an outlet for a new kitchen appliance to running a 240V circuit for an EV charger or hot tub. Every circuit we install is permitted, inspected, and fully code-compliant.

Common Dedicated Circuit Applications

EV Charger Circuits — 240V/50A NEMA 14-50 or hardwired EVSE circuits for Level 2 charging
HVAC & Heat Pump Circuits — Dedicated 240V circuits for central air conditioners, heat pumps, and mini-splits
Kitchen Appliance Circuits — Refrigerator, dishwasher, microwave, garbage disposal, electric range/oven
Laundry Room Circuits — 240V dryer circuits, dedicated washer circuits
Hot Tub & Spa Circuits — 240V/50A or 60A circuits with GFCI breaker and disconnect
Home Office & Workstation Circuits — Dedicated circuits for computers, servers, and AV equipment to prevent interference
Workshop & Garage Circuits — 240V circuits for table saws, air compressors, welders, and large power tools
Generator & Transfer Switch Circuits — Interlock kits and transfer switch wiring
Sub-Panel Installation — Adding a sub-panel for garages, additions, or outbuildings

Signs You Need a Dedicated Circuit

A breaker trips every time you run a specific appliance
Lights dim when the refrigerator, AC, or other motor starts
You're adding an EV charger, hot tub, or major new appliance
Your home office runs multiple computers, monitors, and AV equipment on one circuit
You're setting up a workshop with power tools in the garage
You smell a burning odor near an outlet when using an appliance

NEC Required Dedicated Circuits

The National Electrical Code (NEC) mandates dedicated circuits for specific appliances in all residential wiring. Key required dedicated circuits include:

Refrigerator — 20A dedicated circuit
Dishwasher — 20A dedicated circuit
Garbage disposal — 20A dedicated circuit
Microwave oven — 20A dedicated circuit
Washing machine — 20A dedicated circuit
Electric dryer — 30A, 240V dedicated circuit
Electric range/oven — 50A, 240V dedicated circuit
Central air conditioner — 240V dedicated circuit (amperage per unit specs)
Electric water heater — 30A, 240V dedicated circuit

🔌 Adding a New Appliance? Call First

Before your new appliance, EV charger, or hot tub is delivered and installed, call us to assess your panel capacity and run the required circuit. This avoids delays and ensures the dedicated circuit is ready when you need it. We coordinate with appliance installers, HVAC contractors, and EV charger manufacturers regularly.

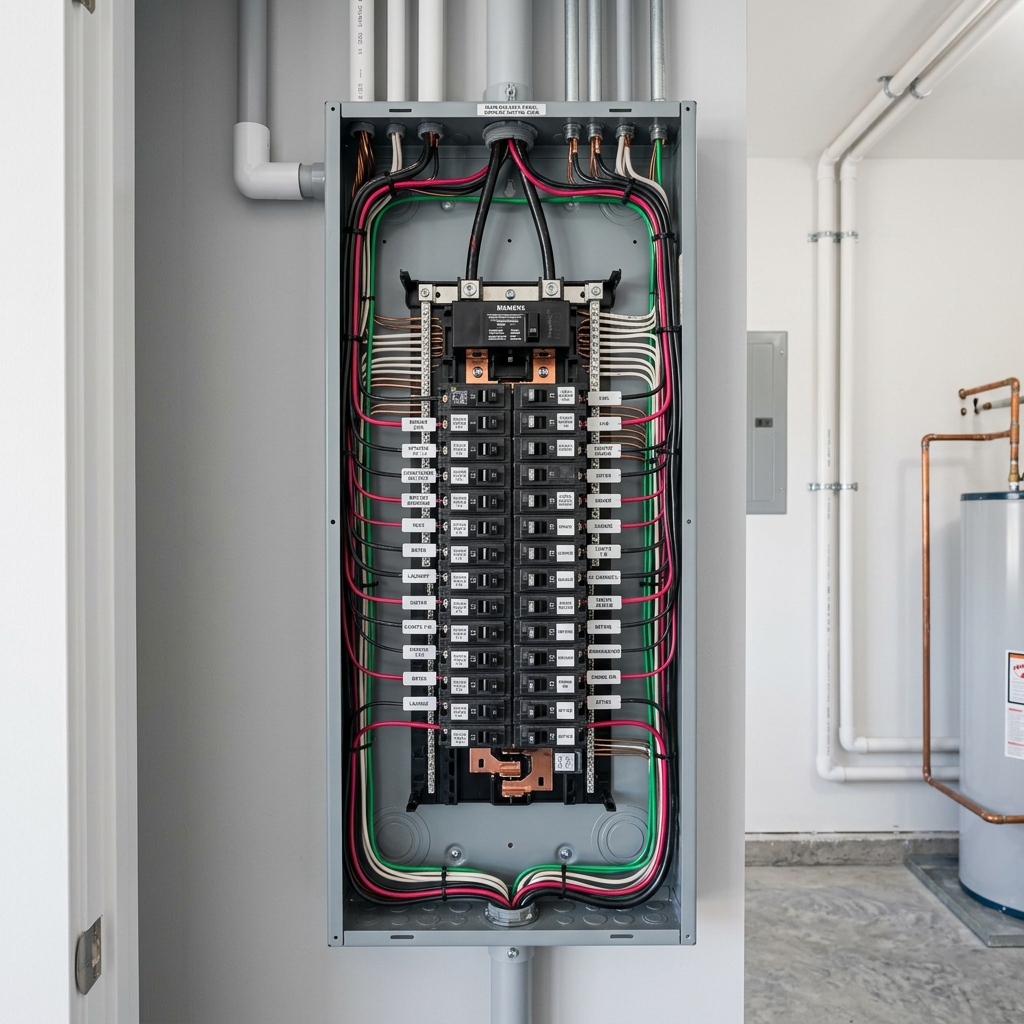

Adding New Circuits to Electrical Breaker Panel in Murfreesboro TN Home

Dedicated Circuit FAQ

How long does it take to add a new circuit?

Most dedicated circuit installations are completed in 2–4 hours, depending on the distance from the panel to the outlet location and wall/ceiling construction. Runs through finished walls require more time than open-stud construction. We provide a time estimate as part of the free quote.

Will adding a circuit damage my walls?

Our electricians use low-impact fishing techniques to run wire through finished walls with minimal drywall damage. When attic or basement access is available, we route wire through those spaces with no visible wall impact. Any small access holes required are patched as part of our standard service.

My panel is full — can I still add a circuit?

In many cases, yes. Options include installing tandem (slim) breakers if your panel supports them, or adding a sub-panel. If your panel is at or near its amperage capacity (common in older 100A panels), a panel upgrade may be the best long-term solution. We evaluate all options during the free estimate.
